Product Details
Product Positioning
Product Positioning: Baling is the final physical stage before rubber products leave the factory. As the terminal equipment on the line, the Weida Automatic Casing & Baling Machine replaces inefficient manual feeding and manual pressing modes, serving as core hardware for capacity leaps and packaging standardization.

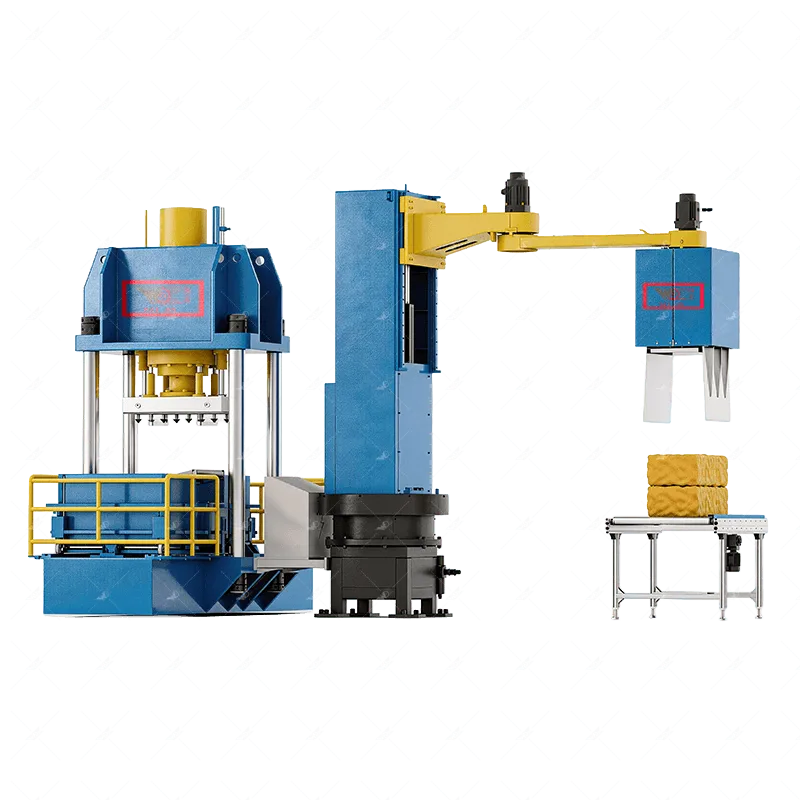

How It Works: During operation, a robotic arm automatically captures upstream rubber blocks and precisely feeds them into the column-type hydraulic baling chamber. The system then automatically executes pressing, pressure holding, and bale discharge. Feeding and pressing are highly coordinated for continuous output.
Typical Users: Suitable for natural, reclaimed, and synthetic rubber producers, especially those facing capacity bottlenecks or inconsistent packaging standards at the end of the line.
Product Advantages
Significant Capacity Increase: Compared to traditional manual feeding, this integrated unit can increase single-station capacity by over 50% while reducing on-site labor by 1-2 workers.
High Space Utilization: The column-type structure features a compact footprint, allowing for flexible deployment in space-constrained older workshops.
Convenient Retrofit Compatibility: As an automation upgrade solution for existing equipment, the front-end module can directly interface with traditional Weida hydraulic balers, allowing customers to upgrade without replacing the entire line.
Applicable Product Types
Natural Rubber (NR), Reclaimed Rubber, Technically Specified Rubber (TSR).
Application Scenarios
In a large domestic reclaimed rubber plant, manual handling was slow and posed injury risks. After introducing this equipment, the robotic arm captures blocks by weight and feeds them into the baler. Workers now only operate the control panel from a safe zone, and the baling rhythm has standardized to mechanical speed with highly consistent packaging dimensions.
Technical Specifications
| Model | Max. Arm Reach | Max. End-Effector Payload | Baler Nominal Force | Total Power | Capacity |
|---|---|---|---|---|---|
| LZDB-100 | 2000mm | 180kg | 1000kN | 10+15kW | 4 - 5 t/h |
| LZDB-120 | 2000mm | 180kg | 1200kN | 10+18.5kW | 4 - 5 t/h |
