Product Details
Product Positioning
Product Positioning: In the early stages of natural rubber processing, the degree of coagulum crushing determines subsequent efficiency. This machine serves as a core pre-treatment link, converting raw material into standard sizes for washing and creping.

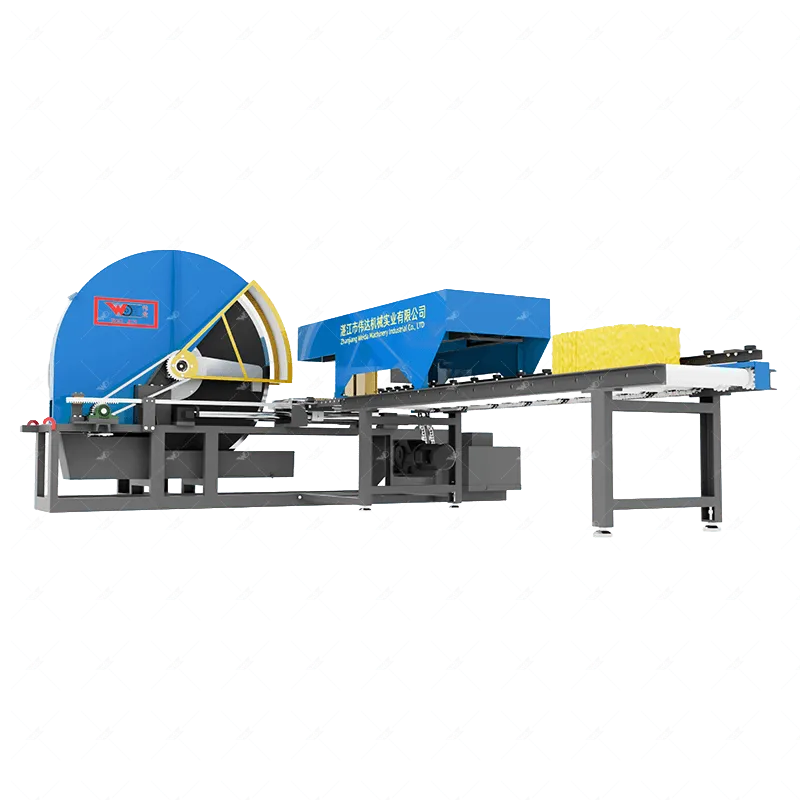

How It Works: Combined with an intelligent conveyor and horizontal hydraulic cutting mechanism, the device automatically feeds blocks of NR, compound, or synthetic rubber into the cutting zone, processing them into blocks, sheets, granules, or strips based on preset parameters.
Typical Users: Ideal for primary processing plants handling hard or scrap rubber, and reclaimed rubber facilities requiring precise feeding size control.
Product Advantages
Full-Process Automation: Enables unmanned transfer and stable continuous feeding into the cutting zone, significantly reducing operational labor.
Precision Multi-Shape Cutting: Adjustable blades and stroke allow for high-consistency output of blocks, sheets, or strips according to specific process requirements.
Reduced Labor Intensity: Completely replaces high-risk, high-intensity manual operation of single-blade cutters, serving as a highly efficient and safer labor alternative.
Applicable Product Types
Natural Rubber (NR), Reclaimed Rubber, Ribbed Smoked Sheet (RSS), Technically Specified Rubber (TSR).
Application Scenarios
In a scrap rubber workshop in Africa, where raw materials were irregular hard blocks, this machine enabled automated feeding and cutting into standard thin sheets. This exposed internal impurities, significantly reducing water usage and processing time for the subsequent washing stage.
Technical Specifications
| Model | Power | Cutterhead Diameter | Rotation Speed | Stroke | Pressure |
|---|---|---|---|---|---|
| ZWQJ-1300 | 2.2+4+0.75+1.5KW | 1300mm | 49r/min | 650mm | 5Mpa |
